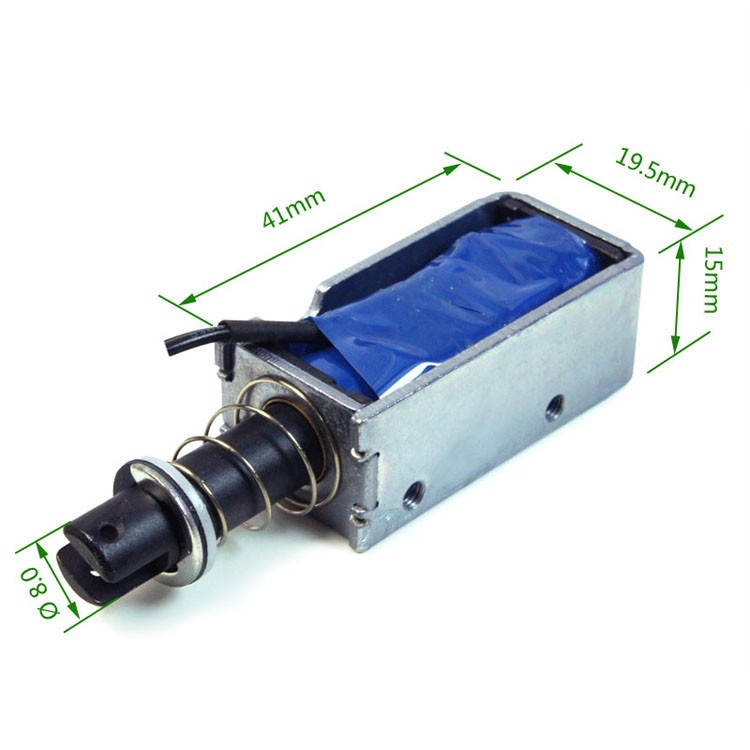

Size: 41*19.5*15mm

Plunger: φ8mm

Voltage: DC24V

Stroke: 0-8mm

Force: 1.5-8N

Power: 57.6W

Current: 2.4A

Resistance: 10Ω

Life: ≥100,000 times

Working Cycle: 0.1s On, 2s Off


Specification download:

横线

Model: SDO-0840L-24A10

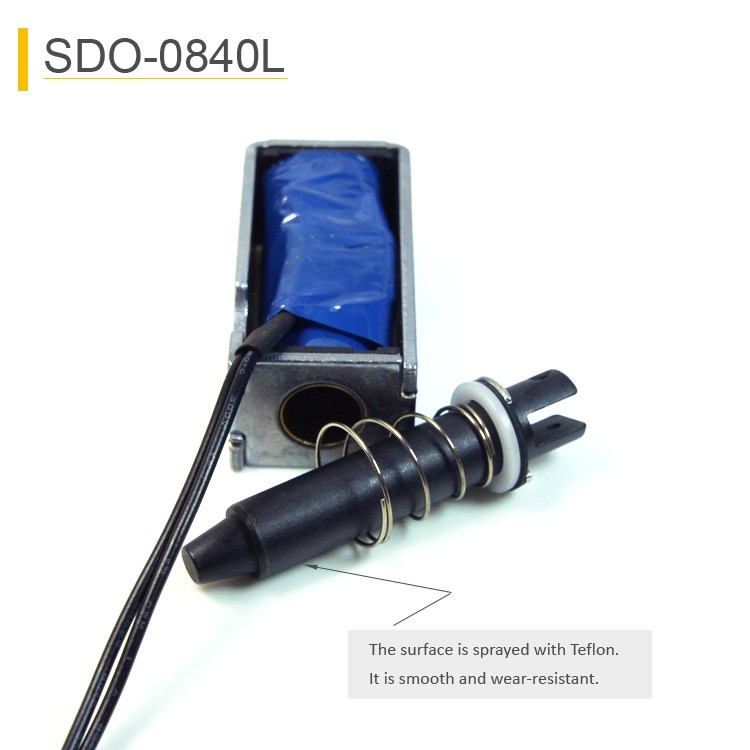

The open frame push pull solenoid is mainly composed of open frame shell with permeability, coil, bobbin, plunger and iron core. Because of its simple structure and low cost, it is widely used in life automation equipment, such as small household appliances, game and vending machines.




  Gif animation of solenoid

pull solenoid



  Demo video of solenoid in YouTube

DC 24V solenoid

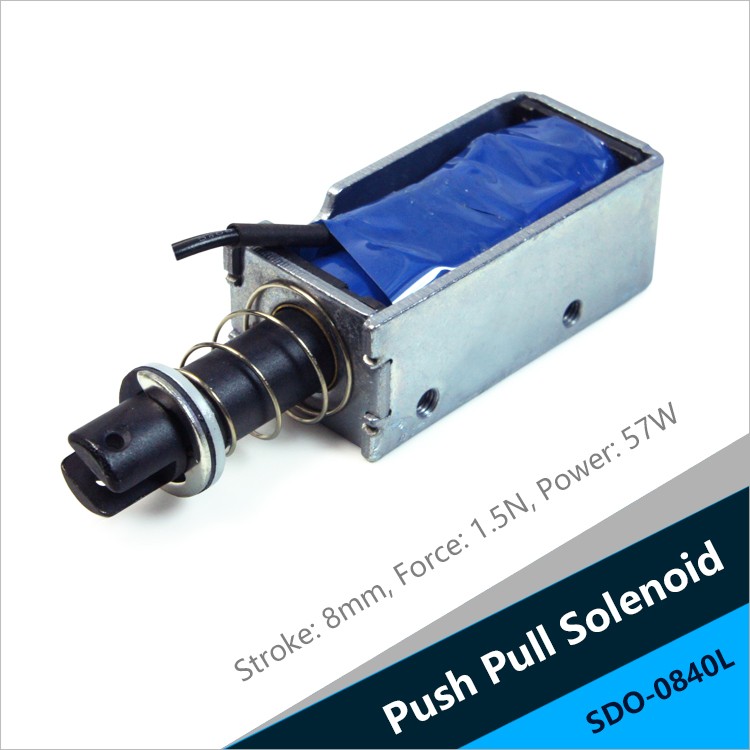

  Real photos of solenoid

push-pull solenoid

open frame solenoid

solenoid

linear solenoid

small solenoid


Size: 41*19.5*15mm

Plunger: φ8mm

Voltage: DC24V

Stroke: 0-8mm

Force: 1.5-8N

Power: 57.6W

Current: 2.4A

Resistance: 10Ω

Life: ≥100,000 times

Working Cycle: 0.1s On, 2s Off


The push pull linear solenoid is non-standard custom, we can customize products according to your needs.


If you have custom requirements, please send an email to: sales@zanty.com, Thank you!


Here are tips that are customized solenoid.




  Drawing of solenoid


size of solenoid




  Force and stroke of solenoid

force of solenoid


Our solenoids are widely used in the industrial automation, life automation, office automation and other applications.


Industrial automation includes embroidery machine, textile machine, burners, robots, etc. Life automation includes subway screen doors, ATM machines, automatic ticket checking machines, vending machines, cash boxes, various credit card machines, toasters, medicine dispensers, oxygen machines, breast pumps, sealing machines, fishing boats, dishwasher, bicycle rental system, electric pressure cooker, salad machine, massager, game machine, car lock, electronic lock for charging gun, etc.


Office automation includes lettering machine, printer, copier, coded lock, various automation door locks, safe, charging cabinet, mechanical arm, leakage protection switch, etc.
