SDO-0625L Open Frame Push Pull Solenoid For Game Console
SDO-0625L Open Frame Push Pull Solenoid For Game Console
SDO-0625L Open Frame Push Pull Solenoid For Game Console
SDO-0625L Open Frame Push Pull Solenoid For Game Console
SDO-0625L Open Frame Push Pull Solenoid For Game Console
SDO-0625L Open Frame Push Pull Solenoid For Game Console

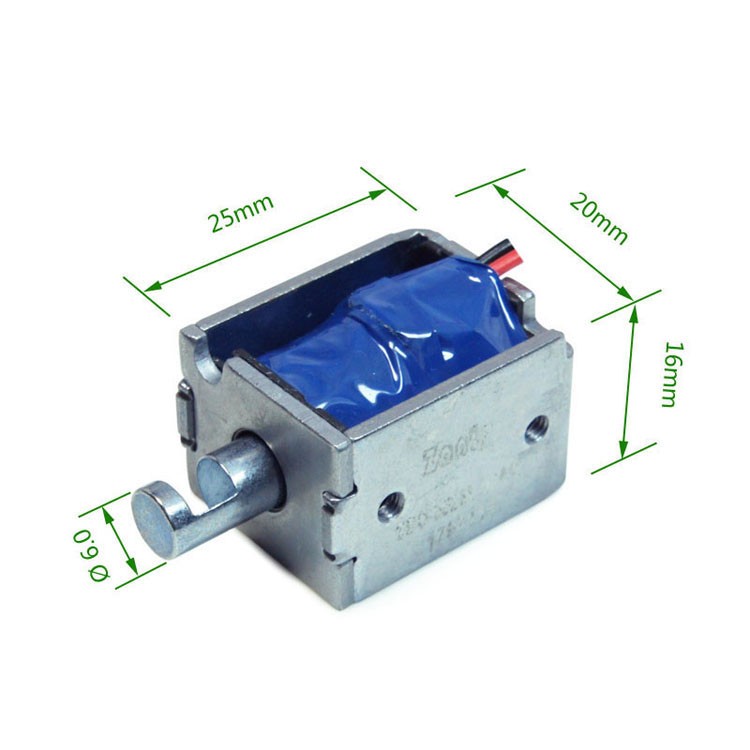

Size: 25*20*16mm

Plunger: φ6mm

Voltage: DC12V

Stroke: 0-6mm

Force: 1-3N

Power: 5.3W

Current: 0.66A

Resistance: 12Ω

Working Cycle: 1s On, 1s Off


Specification download:

PDF

横线

Model: SDO-0625L-08A12


The open frame push pull solenoid is mainly composed of open frame shell with permeability, coil, bobbin, plunger and iron core. Because of its simple structure and low cost, it is widely used in life automation equipment, such as small household appliances, game and vending machines.




  Gif animation of solenoid


pull solenoid




  Demo video of solenoid in YouTube


push pull solenoid

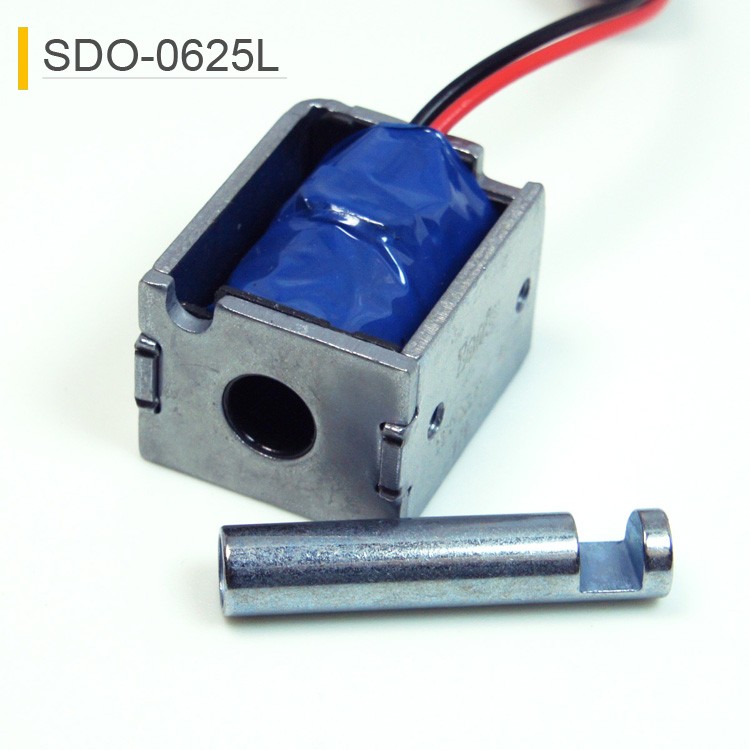

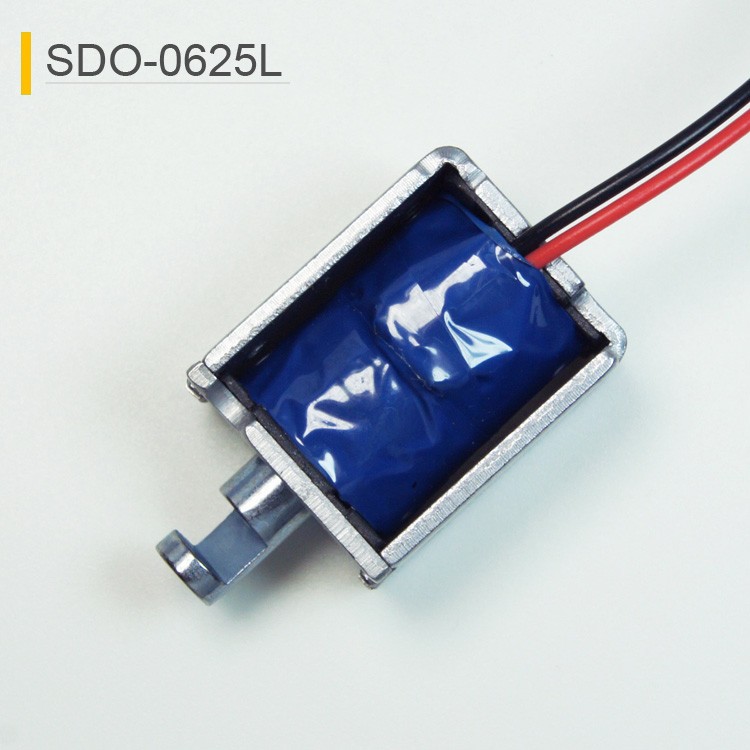

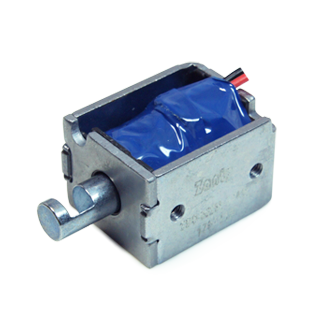

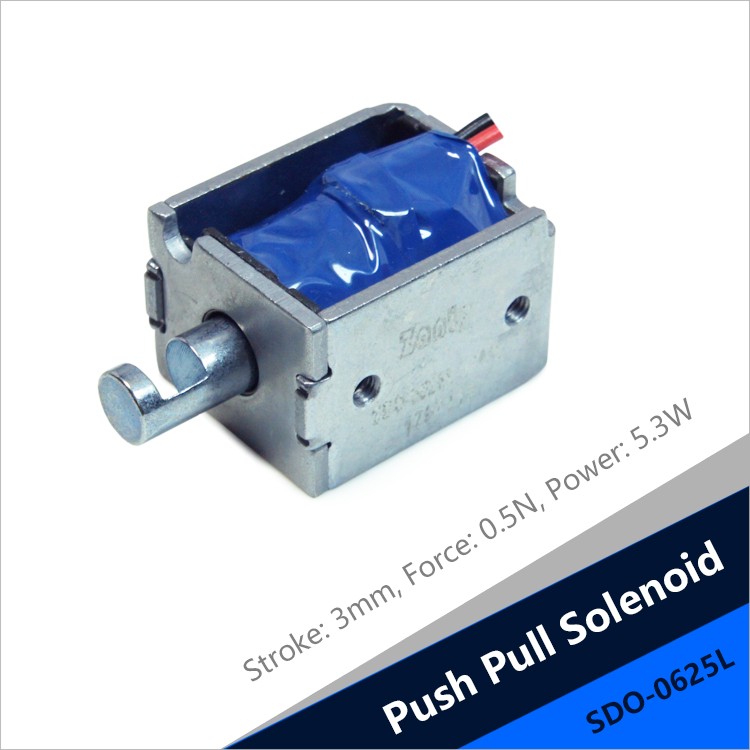

  Real photos of solenoid


open frame pull solenoid

Solenoid

open frame solenoid

small linear solenoid


Size: 25*20*16mm

Plunger: φ6mm

Voltage: DC12V

Stroke: 0-6mm

Force: 1-3N

Power: 5.3W

Current: 0.66A

Resistance: 12Ω

Working Cycle: 1s On, 1s Off


The push pull linear solenoid is non-standard custom, we can customize products according to your needs.


If you have custom requirements, please send an email to: sales@zanty.com, Thank you!


Here are tips that are customized solenoid.




SDO-0625L Open Frame Push Pull Solenoid For Game Console  Open Frame Solenoid SDO-0625L_Specification.pdf     SDO-0625L Open Frame Push Pull Solenoid For Game Console




  Drawing of solenoid


solenoid



  Force and stroke of solenoid

force and stroke of solenoid


Our solenoids are widely used in the industrial automation, life automation, office automation and other applications.


Industrial automation includes embroidery machine, textile machine, burners, robots, etc. Life automation includes subway screen doors, ATM machines, automatic ticket checking machines, vending machines, cash boxes, various credit card machines, toasters, medicine dispensers, oxygen machines, breast pumps, sealing machines, fishing boats, dishwasher, bicycle rental system, electric pressure cooker, salad machine, massager, game machine, car lock, electronic lock for charging gun, etc.


Office automation includes lettering machine, printer, copier, coded lock, various automation door locks, safe, charging cabinet, mechanical arm, leakage protection switch, etc.


Solenoid For Game Console


application of solenoid
