Size: 27.2*11*8.6mm

plunger:φ4mm

Voltage: DC3V

Stroke: 0-4mm

Force: Can move

Holding Force: 0.8N

Power : 1.3W

Current: 0.43A

Resistance: 14Ω

Life: ≥200,000 times

Working  Cycle: 0.2s on, 2s off


Specification download:

横线

Model: SDK-0427L-03A14

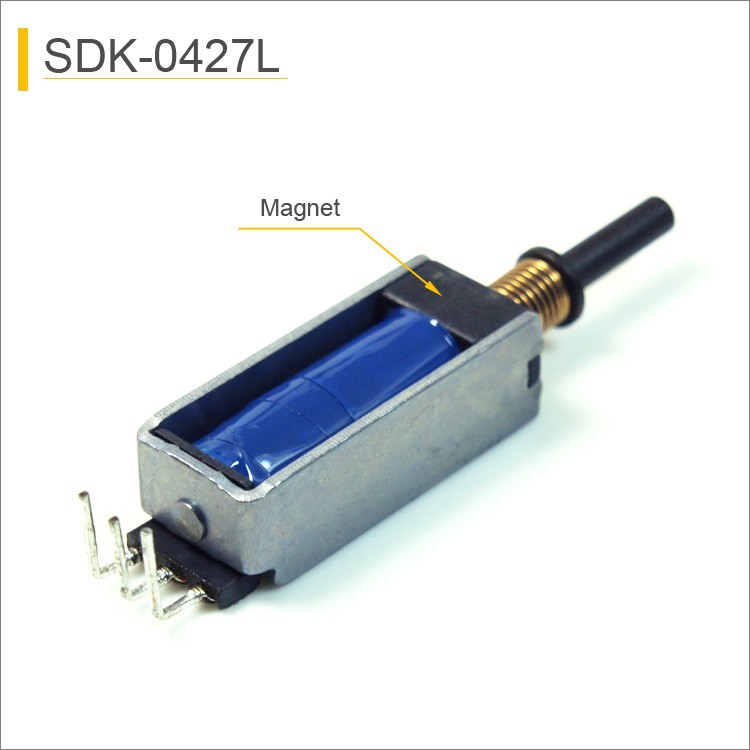

Latching solenoids come equipped with a permanent magnet, exhibiting magnetic attraction between the plunger and pole piece with no electrical power applied.


With a spring or other load providing return force, the latching solenoid requires only a momentary excitation pulse to change position conferring the following advantages on these devices:

• Power consumption is zero to hold in either end position – this is advantageous for systems with limited power supply such as battery powered devices, or devices powered by telephone line power, or solar power.

• Power dissipation (heat) is zero in the holding condition – this is advantageous to handling temperature-sensitive materials such as photochemicals, blood products, or chemical reagents.

• There is no radiated electrical noise in the holding condition (there is a fixed magnetic field due to permanent magnets), this can be advantageous in sensitive measuring circuits.

• The ability to hold end position without power, can allow higher ower to be applied during the excitation pulse for a given size of device without causing heating problems, this can allow higher operating speed to be realised, or allow a smaller device to be used to move the load in a given application.



  Demo video of solenoid in YouTube

dc 3v solenoid

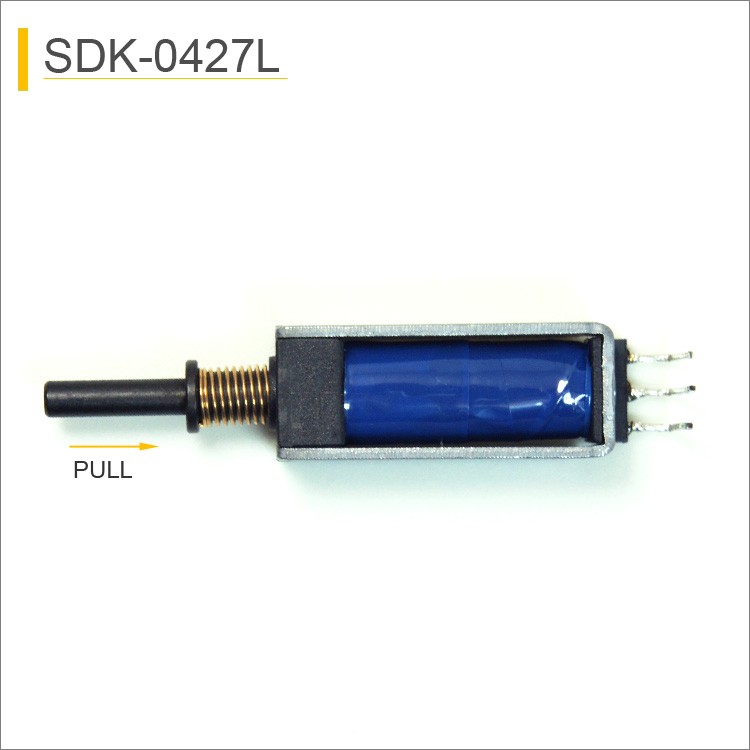

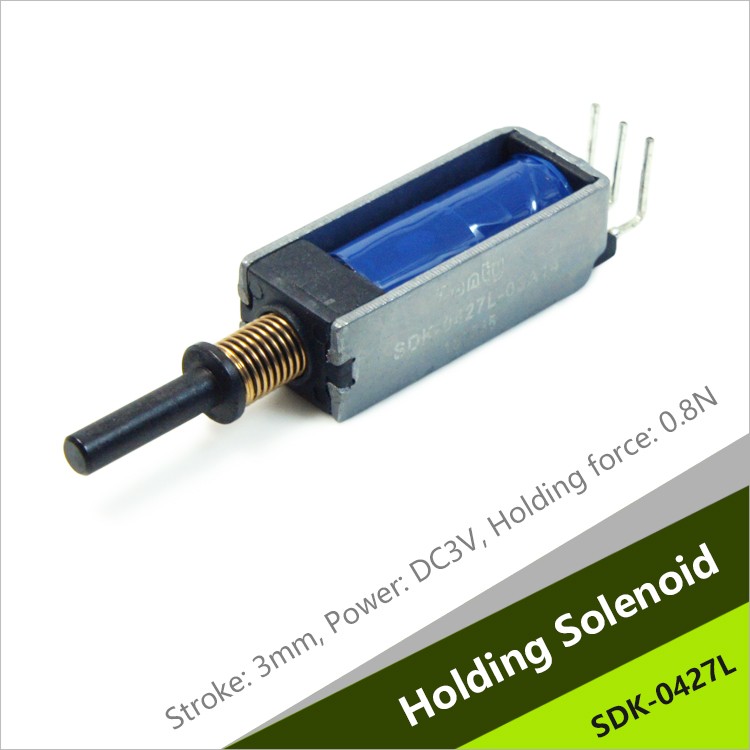

  Real photos of solenoid

Single Holding Solenoid

pull solenoid

Holding Solenoid

linear solenoid

latching solenoid



Size: 27.2*11*8.6mm

plunger:φ4mm

Voltage: DC3V

Stroke: 0-4mm

Force: Can move

Holding Force: 0.8N

Power : 1.3W

Current: 0.43A

Resistance: 14Ω

Life: ≥200,000 times

Working  Cycle: 0.2s on, 2s off


The single latching solenoid is non-standard custom, we can customize products according to your needs.


If you have custom requirements, please send an email to: sales@zanty.com, Thank you!


Here are tips that are customized solenoid.

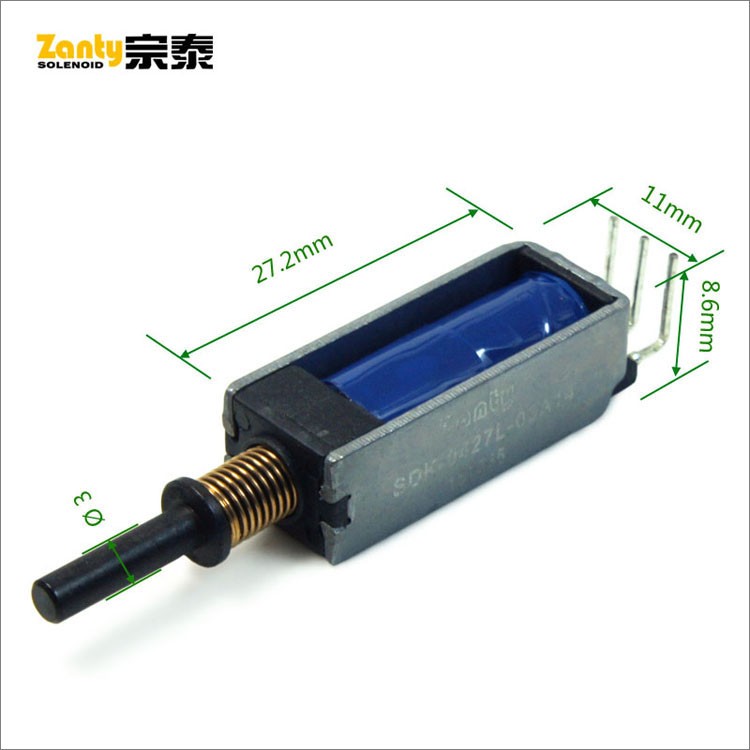

  Drawing of solenoid


size of solenoid



  Working principle of solenoid

principle of solenoid


Our solenoids are widely used in the industrial automation, life automation, office automation and other applications.


Industrial automation includes embroidery machine, textile machine, burners, robots, etc. Life automation includes subway screen doors, ATM machines, automatic ticket checking machines, vending machines, cash boxes, various credit card machines, toasters, medicine dispensers, oxygen machines, breast pumps, sealing machines, fishing boats, dishwasher, bicycle rental system, electric pressure cooker, salad machine, massager, game machine, car lock, electronic lock for charging gun, etc.


Office automation includes lettering machine, printer, copier, coded lock, various automation door locks, safe, charging cabinet, mechanical arm, leakage protection switch, etc.
