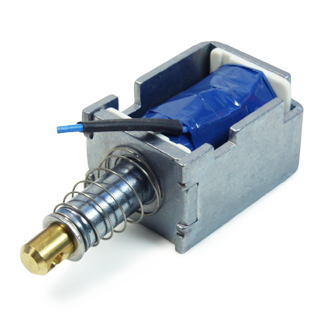

SDO-0937L Linear Pull Solenoid For Smart Electric Pressure Cooker
SDO-0937L Li...

Size: 37*26*20.5mm

Plunger: φ9mm

Voltage: DC18V

Stroke: 0-13mm

Force: 1-8N

Power: 18W(Start) 4.5W(Hold)

Current: 1A

Resistance: 18Ω

Life: ≥200,000 times

Working Cycle: Continuous Power

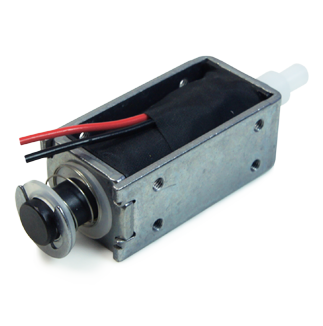

SDO-0946S Push Pull Solenoid For Burners And Other Automated Equipment
SDO-0946S Pu...

Size: 46.4*23*18mm

Plunger: φ9mm

Voltage: DC24V

Stroke: 0-7mm

Force: 1.5-10N

Power: 8.2W

Current: 0.34A

Resistance: 70Ω

Life: ≥500,000 times

Working Cycle: 0.51s On, 0.5s Off

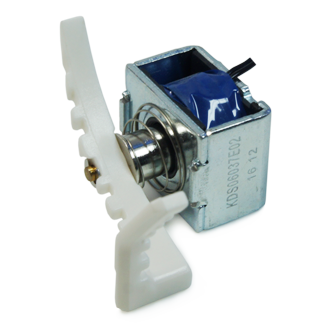

SDO-1015S Open Frame Linear Push Pull Solenoid For Vending Machine
SDO-1015S Op...

Size: 15*23*19mm

Plunger: φ9.7mm

Voltage: DC12V

Stroke: 0-4mm

Force: 0.5-3N

Power: 4.8W

Current: 0.4A

Resistance: 30Ω

Life: ≥1500,000 times

Working Cycle: 1s On, 3s Off


SDO-1031S Push Solenoid For Projectors And Other Projection Apparatus
SDO-1031S Pu...

Size: 31*29*24mm

Plunger: φ10mm

Voltage: DC12V

Stroke: 0-9mm

Force: 4-15N

Power: 18W

Current: 1.5A

Resistance: 8Ω

Working Cycle: 0.1s On, 0.3s Off


SDO-1037L Pull Solenoid For ATM Machines And Other Financial Equipment
SDO-1037L Pu...

Size: 37*26*20mm

Plunger: φ10mm

Voltage: DC36V

Stroke: 0-6mm

Force: 2-10N

Power: 32.4W

Current: 0.9A

Resistance: 40Ω

Life: ≥1000,000 times

Working Cycle: 0.1s On, 0.9s Off

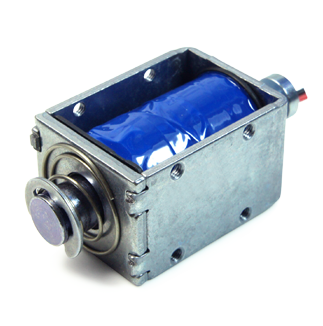

SDO-1040S Push Pull Solenoid For ATM And Other Financial Equipment
SDO-1040S Pu...

Size: 40.8*29*24mm

Plunger: φ10mm

Voltage: DC12V

Stroke: 0-10mm

Force: 3.5-25N

Power: 8W

Current: 0.67A

Resistance: 18Ω

Working Cycle: 100s On, 30s Off

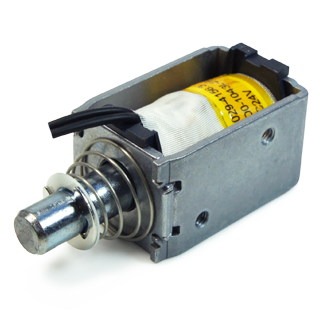

SDO-1043L Linear Push Pull Solenoid For Leakage Protection Switch
SDO-1043L Li...

Size: 43*28*24mm

Plunger: φ9.45mm

Voltage: DC24V

Stroke: 0-10mm

Force: 0.5-25N

Power: 8.7W

Current: 0.36A

Resistance: 66Ω

Working Cycle: Continuous Power

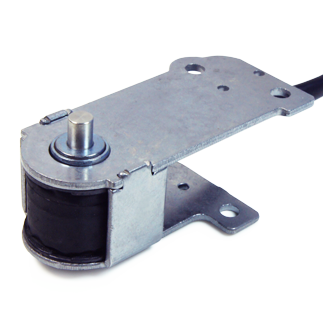

SDO-1228S Linear Push Pull Solenoid For Parking Gear Electronic Lock
SDO-1228S Li...

Size: 26.2*32*80mm

Plunger: φ12mm

Voltage: DC12V

Stroke: 0-7mm

Force: 1-8N

Power: 7.6W

Current: 0.63A

Resistance: 19Ω

Life: ≥500,000 times

Working Cycle: 1s On, 3s Off


SDO-1230S Open Frame Push-pull Solenoid For Parking Gear Electronic Lock
SDO-1230S Op...

Size: 30*32*43mm

Plunger: φ12mm

Voltage: DC12V

Stroke: 0-6mm

Force: 1-8N

Power: 9.6W

Current: 0.8A

Resistance: 15Ω

Life: ≥500,000 times

Working Cycle: 1s On, 3s Off

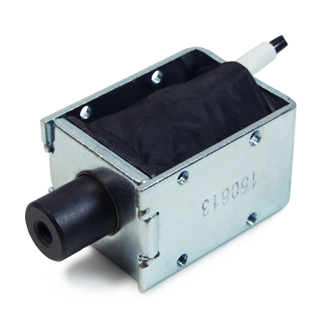

SDO-1240L Linear Pull-Push Solenoid For ATM And Vending Machines
SDO-1240L Li...

Size: 40*29*24mm

Plunger: φ12mm

Voltage: DC12V

Stroke: 0-10mm

Force: 2-15N

Power: 20.6W

Current: 1.71A

Resistance: 7Ω

Life: ≥300,000 times

Working Cycle: 1s On, 3s Off

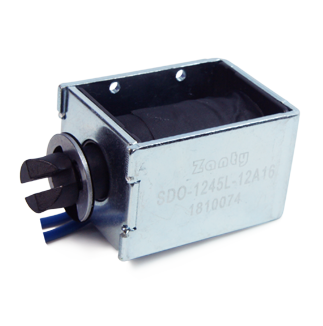

SDO-1245L Open Frame Linear Pull Solenoid For Advertising Carving Machine
SDO-1245L Op...

Size: 45*33*28mm

Plunger: φ12mm

Voltage: DC12V

Stroke: 0-10mm

Force: 2-15N

Power: 9W

Current: 0.75A

Resistance: 16Ω

Life: ≥200,000 times

Working Cycle: 1s On, 1s Off

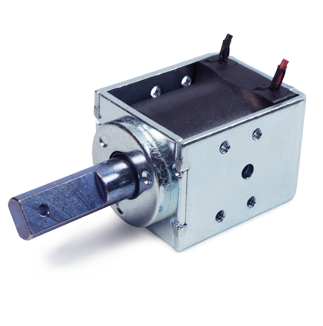

SDO-1251L Pull Solenoid For Bicycle Rental Equipment Outdoor Locks
SDO-1251L Pu...

Size: 51*41.7*36.58mm

Plunger: φ12.7mm

Voltage: DC12V

Stroke: 0-10mm

Force: 5-50N

Power: 19.2W

Current: 1.6A

Resistance: 7.5Ω

Life: ≥500,000 times

Working Cycle: 0.5s On, 0.5s Off
